Features:
� Auto pulse signal processing with 2 adjustable levels
� Auto temperature compensation
� High density SMD design
� Additional connector for EOL resistor
� Fire resistant case
� Low noise, high sensitivity, dual element PIR sensor
� Two levels of pulse count sensitivity: 1-3 pulses or 2-6 pulses
� Second generation Fresnel lens
� White light immunity
� 22 zones: 9+5+5+3
� Green LED alarm indication (can be disabled)
� N.C. alarm output with rating of DC 28V, 0.15A
� N.C. anti-tamper switch with rating of 0.15A, 28Vdc
� Power input of DC 9-16V, 18mA
� Operating temperature range of -10C to 50C
� Operating humidity of 95%
Specifications:
� Material: Fire Resistant Case
� Sensor: Low Noise, High Sensitivity, Dual Element Pir Sensor
� Lens: Second Generation Fresnel Lens
� Coverage: 12M x 110 Degrees
� Zones: 22 (9+5+5+3)
� Installation Height: 1.1-3.1M
� Alarm Output: N.C., Rating Dc 28V, 0.15A
� Anti-Tamper Switch: N.C., Opens when Cover is Removed, Rating 0.15A, 28Vdc
� Power Input: Dc 9-16V, 18Ma
� Operating Temperature: -10C to 50C
� Operating Humidity: 95%
� White Light Immunity: Yes
Package Includes:

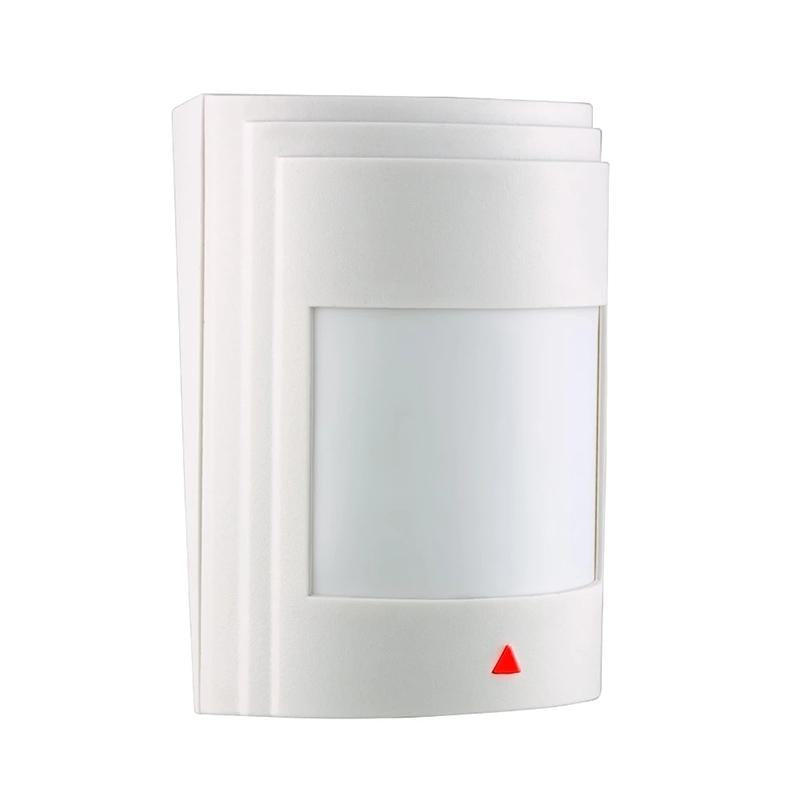

� 1 x Pa-476 Wired Passive Infrared Wide Angle Pir Motion Sensor Infrared Detector Alarm White
